janmarine3

South Africa
286 Posts

Posted - 14 May 2013 :  07:47:52  Show Profile  Reply with Quote
Hi guys.
I replaced the original 1600 engine with a 1725 in my ser 3.
I am not sure whether I am using the correct dipstick for the 1725 engine , I only had this one.
Can someone please verify whether this is the correct dipstick.
The total length from the bearing surface on the block to the bottom end in the sump is 236 millimetres.

[/URL]

janmarine3

South Africa
286 Posts

Posted - 15 May 2013 :  16:49:35  Show Profile  Reply with Quote
I would appreciate some help please guys.
Anyone ?
Go to Top of Page

1922

United Kingdom
549 Posts

Posted - 15 May 2013 :  18:43:02  Show Profile  Visit 1922's Homepage  Reply with Quote
Same measurement on mine is 270mm


Go to Top of Page

janmarine3

South Africa
286 Posts

Posted - 15 May 2013 :  21:09:42  Show Profile  Reply with Quote
Thanks 1922, that is a big difference....34 mm
Do you perhaps carry knowledge of the correct dipstick for the 1725 straight engines and the slanted engines, would there be a difference ?My engine is still vertical as standard in the series Rapiers.
Go to Top of Page

1922

United Kingdom
549 Posts

Posted - 16 May 2013 :  09:17:09  Show Profile  Visit 1922's Homepage  Reply with Quote
Ahh - no that one I don't know. It must make a few millimetres different as Hunter engine leans towards the dipstick.

What we need is someone with a Series V and a tape measure.


Go to Top of Page

janmarine3

South Africa
286 Posts

Posted - 16 May 2013 :  14:00:09  Show Profile  Reply with Quote
yep, hopefully someone can help, I think I have been helping the oil leaks on by overfilling...
Thanks for your input so far.
Go to Top of Page

sunalp2

Australia
10 Posts

Posted - 17 Jun 2013 :  07:01:44  Show Profile  Reply with Quote

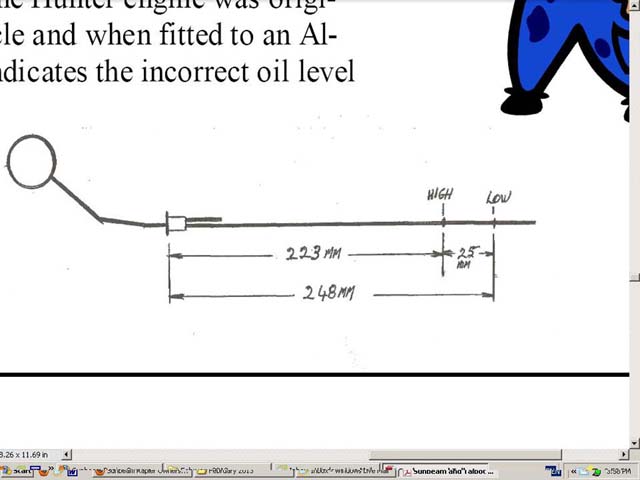

We had a tech tip in our newsletter on this.

If the engine comes from a Hunter you do need to modify the dip stick, because the motor in the Hunter is leaned over.

No modification is needed in a Rapier Fastback.

The measurements are:

22.3mm and 24.8mm.




1962 Series II Alpine
1957 Series I Rapier

Edited by - sunalp2 on 17 Jun 2013 07:07:06
Go to Top of Page

janmarine3

South Africa
286 Posts

Posted - 17 Jun 2013 :  13:21:44  Show Profile  Reply with Quote
Thanks sunalp2, have not got around to it yet, I will check it out and mod mine .
